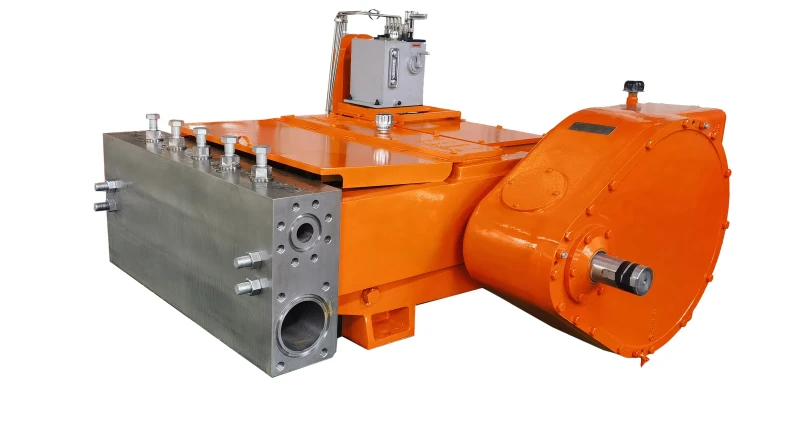

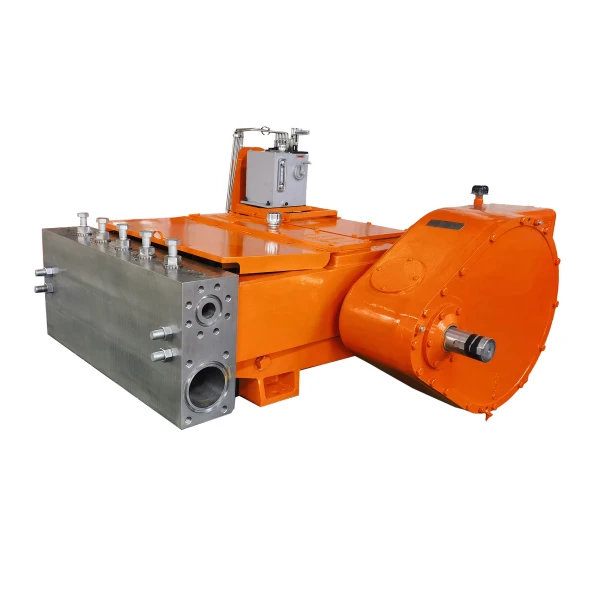

Nanjing Yalong Petrochemical Equipment Technology Co., Ltd huwa wieħed mill-manifatturi u fornituri ewlenin ta 'pompi ta' enerġija quintuplex 415q-5 fiċ-Ċina. Nitolbok li tħossok liberu li tixtri pompi tal-enerġija quintuplex personalizzati 415q-5 bi prezz kompetittiv mill-fabbrika tagħna. Jekk għandek xi mistoqsija dwar il-kwotazzjoni, jekk jogħġbok tħossok liberu li tibgħatilna email.
Tagħmir Standard
•Aluminju fondut-bronż, azzar inossidabbli duplex falsifikat, jew truf tal-fluwidu tal-azzar tal-karbonju falsifikati
•Kaxxi tal-mili tal-aluminju-bronż jew duplex tal-istainless steel
•Various valv disinji offruti għal kull stil tarf fluwidu
•Plungers miksija mill-karbur tat-tungstenu fuq bażi ta 'l-istainless steel jew plungers taċ-ċeramika solidi
•Crankshaft estiż doppju
•Multiple plunger pakkjar arranġamenti offruti
•Sistema ta ' lube tat-tarf tal-qawwa
Aċċessorji Fakultattivi
•Yalong bolt fuq ger reducers (proporzjonijiet)
– 2.27:1 – 3.36:1 – 4.84:1
– 2.89:1 – 4.38:1 – 5.56:1
– 3.25:1 – 3.69:1
•Packing lubrikanti
•Arranġamenti personalizzati għall-ippakkjar tal-planġer
•Pakketti kompluti tal-pompa
Speċifikazzjonijiet tal-Pompa
|
Rated (HP, kW) |
415 |
309 |
|
Tul tal-puplesija (pulzieri, mm) |
5 |
127 |
|
Pressjoni massima ta' ħruġ (PSI, Bar) |
||
|
400Q-5H |
5,000 |
345 |
|
400Q-5M |
3,020 |
208 |
|
400Q-5L |
1,660 |
114 |
|
Tagħbija nominali tal-virga (lb, kg) |
14,838 |
6,730 |
|
Veloċità API-674, RPM |
310 |
|
|
Veloċità massima, RPM |
400 |
|
|
Veloċità minima, RPM |
100 |
|
|
Dimensjonijiet tal-krankxaft (in., mm) |
||
|
Dijametru |
4.875 |
124 |
|
Tul (twil) |
11.69 |
297 |
|
Tul (qasir) |
5.62 |
143 |
|
Keyway, wisa' × fond (pulzieri, mm) |
1.25 × .62 |
32 × 16 |
|
Kapaċità taż-żejt (gal, l) |
||
|
Pompa |
12 |
46 |
|
Reducer (tvarja skont il-proporzjon) |
3.5 sa 6.5 |
13 sa 25 |
|
Piż (lb, kg); stimi biss |
||
|
Pompa |
||
|
400Q-5H |
7,010 |
3,186 |
|
400Q-5M |
7,060 |
3,209 |
|
400Q-5L |
7,150 |
3,250 |
|
Reducer |
1,100 |
499 |
|
Effiċjenza mekkanika |
90% |
|
Konnessjonijiet tal-flanġ
|
Mudell tal-Pompa |
Daqsijiet tal-Konnessjoni tal-Ħruġ (in., mm) |
Daqsijiet tal-Konnessjoni tal-Ġbid (in., mm) |
|
Q400H |
2 (50.8) ANSI 2500 RJ |
6 (152.4) NSD 600 RJ* |
|
Q400M |
3 (76.2) NSD 5000 RJ* |
6 (152.4) NSD 600 RJ* |
|
Q400L |
4 (101.6) API 2000 RJ |
8 (203.2) ANSI 150 FF |
*Fanġ wieħed blind u wieħed tal-għonq tal-weldjatura pprovduti
Klassifikazzjonijiet tal-Prestazzjoni
|
Mudell (standard) |
Dijametru tal-planġer (pulzieri) |
Galun kull Rivoluzzjoni |
Pressjoni massima PSI |
100 RPM |
150 RPM |
200 RPM |
310 RPM* |
350 RPM |
400 RPM |
||||||
|
GPM |
BPD |
GPM |
BPD |
GPM |
BPD |
GPM |
BPD |
GPM |
BPD |
GPM |
BPD |
||||
|
400Q-5H |
1.875 |
0.2988 |
5,000 |
29.9 |
1025 |
44.8 |
1537 |
59.8 |
2049 |
92.6 |
3176 |
104.6 |
3586 |
119.5 |
4098 |
|
2.000 |
0.3400 |
4,720 |
34.0 |
1166 |
51.0 |
1749 |
68.0 |
2331 |
105.4 |
3614 |
119.0 |
4080 |
136.0 |
4663 |
|
|
2.125 |
0.3838 |
4,180 |
38.4 |
1316 |
57.6 |
1974 |
76.8 |
2632 |
119.0 |
4080 |
134.3 |
4606 |
153.5 |
5264 |
|
|
2.250 |
0.4303 |
3,730 |
43.0 |
1475 |
64.5 |
2213 |
86.1 |
2951 |
133.4 |
4574 |
150.6 |
5164 |
172.1 |
5901 |
|
|
400Q-5M |
2.500 |
0.5312 |
3,020 |
53.1 |
1821 |
79.7 |
2732 |
106.2 |
3643 |
164.7 |
5646 |
185.9 |
6375 |
212.5 |
7286 |
|
2.750 |
0.6428 |
2,500 |
64.3 |
2204 |
96.4 |
3306 |
128.6 |
4408 |
199.3 |
6832 |
225.0 |
7714 |
257.1 |
8816 |
|
|
3.000 |
0.7650 |
2,100 |
76.5 |
2623 |
114.7 |
3934 |
153.0 |
5246 |
237.1 |
8131 |
267.7 |
9180 |
306.0 |
10491 |
|
|
3.250 |
0.8978 |
1,790 |
89.8 |
3078 |
134.7 |
4617 |
179.6 |
6156 |
278.3 |
9542 |
314.2 |
10774 |
359.1 |
12313 |
|
|
400Q-5L |
3.375 |
0.9682 |
1,660 |
96.8 |
3320 |
145.2 |
4979 |
193.6 |
6639 |
300.1 |
10291 |
338.9 |
11618 |
387.3 |
13278 |
|
3.500 |
1.0412 |
1,540 |
104.1 |
3570 |
156.2 |
5355 |
208.2 |
7140 |
322.8 |
11067 |
364.4 |
12495 |
416.5 |
14280 |
|
|
3.750 |
1.1953 |
1,340 |
119.5 |
4098 |
179.3 |
6147 |
239.1 |
8196 |
370.5 |
12704 |
418.4 |
14344 |
478.1 |
16393 |
|
|
4.000 |
1.3600 |
1,180 |
136.0 |
4663 |
204.0 |
6994 |
272.0 |
9326 |
421.6 |
14455 |
476.0 |
16320 |
544.0 |
18651 |
|
|
4.250 |
1.5353 |
1,050 |
153.5 |
5264 |
230.3 |
7896 |
307.1 |
10528 |
475.9 |
16318 |
537.4 |
18424 |
614.1 |
21056 |
|
|
4.500 |
1.7212 |
930 |
172.1 |
5901 |
258.2 |
8852 |
344.2 |
11803 |
533.6 |
18294 |
602.4 |
20655 |
688.5 |
23606 |
|
|
Mudell (metriku) |
Dijametru tal-planġer (pulzieri) |
Litri Kull Rivoluzzjoni |
Pressjoni Massima BAR |
100 RPM |
150 RPM |
200 RPM |
310 RPM* |
350 RPM |
400 RPM |
||||||
|
LPM |
M3/hr |
LPM |
M3/hr |
LPM |
M3/hr |
LPM |
M3/hr |
LPM |
M3/hr |
LPM |
M3/hr |
||||
|
400Q-5H |
1.875 |
1.1311 |
370 |
113.1 |
6.8 |
169.7 |
10.2 |
226.2 |
13.6 |
350.6 |
21.0 |
395.9 |
23.8 |
452.4 |
27.1 |
|
2.000 |
1.2869 |
325 |
128.7 |
7.7 |
193.0 |
11.6 |
257.4 |
15.4 |
398.9 |
23.9 |
450.4 |
27.0 |
514.8 |
30.9 |
|
|
2.125 |
1.4528 |
288 |
145.3 |
8.7 |
217.9 |
13.1 |
290.6 |
17.4 |
450.4 |
27.0 |
508.5 |
30.5 |
581.1 |
34.9 |
|
|
2.250 |
1.6287 |
257 |
162.9 |
9.8 |
244.3 |
14.7 |
325.7 |
19.5 |
504.9 |
30.3 |
570.1 |
34.2 |
651.5 |
39.1 |
|
|
400Q-5M |
2.500 |
2.0108 |
208 |
201.1 |
12.1 |
301.6 |
18.1 |
402.2 |
24.1 |
623.3 |
37.4 |
703.8 |
42.2 |
804.3 |
48.3 |
|
2.750 |
2.4330 |
172 |
243.3 |
14.6 |
365.0 |
21.9 |
486.6 |
29.2 |
754.2 |
45.3 |
851.6 |
51.1 |
973.2 |
58.4 |
|
|
3.000 |
2.8955 |
145 |
289.6 |
17.4 |
434.3 |
26.1 |
579.1 |
34.7 |
897.6 |
53.9 |
1013.4 |
60.8 |
1158.2 |
69.5 |
|
|
3.250 |
3.3982 |
123 |
339.8 |
20.4 |
509.7 |
30.6 |
679.6 |
40.8 |
1053.4 |
63.2 |
1189.4 |
71.4 |
1359.3 |
81.6 |
|
|
400Q-5L |
3.375 |
3.6646 |
114 |
366.5 |
22.0 |
549.7 |
33.0 |
732.9 |
44.0 |
1136.0 |
68.2 |
1282.6 |
77.0 |
1465.9 |
88.0 |
|
3.500 |
3.9411 |
106 |
394.1 |
23.6 |
591.2 |
35.5 |
788.2 |
47.3 |
1221.7 |
73.3 |
1379.4 |
82.8 |
1576.4 |
94.6 |
|
|
3.750 |
4.5242 |
93 |
452.4 |
27.1 |
678.6 |
40.7 |
904.8 |
54.3 |
1402.5 |
84.2 |
1583.5 |
95.0 |
1809.7 |
108.6 |
|
|
4.000 |
5.1476 |
81 |
514.8 |
30.9 |
772.1 |
46.3 |
1029.5 |
61.8 |
1595.8 |
95.7 |
1801.7 |
108.1 |
2059.0 |
123.5 |
|
|
4.250 |
5.8111 |
72 |
581.1 |
34.9 |
871.7 |
52.3 |
1162.2 |
69.7 |
1801.5 |
108.1 |
2033.9 |
122.0 |
2324.5 |
139.5 |
|
|
4.500 |
6.5149 |
64 |
651.5 |
39.1 |
977.2 |
58.6 |
1303.0 |
78.2 |
2019.6 |
121.2 |
2280.2 |
136.8 |
2606.0 |
156.4 |
|
*APIVeloċità
Noti Ġenerali
1. Il-kapaċitajiet murija huma bbażati fuq effiċjenza volumetrika ta '100 fil-mija. Il-kapaċitajiet attwali huma aktar baxxi, ibbażati fuq il-pressjoni tal-ħruġ u l-kompressibbiltà tal-fluwidu.
2. Disinji konformi mal-API-674 u NACE huma disponibbli; ikkonsulta Yalong għal dettalji u eċċezzjonijiet għal dawn l-istandards.
3. Daqsijiet standard tal-planġer huma murija, iżda daqsijiet oħra huma disponibbli fuq talba.
